Monolithic Perovskite Solar Cell Kit
Make Carbon-Based HTM-Free Perovskite Solar Cells

Join the revolution of the most stable, yet efficient, Monolithic Perovskite Solar Cell structure with our whole new kit. Get our ready-to-use monolithic electrodes bearing all of the compact TiO2, mesoporous TiO2, mesoporous ZrO2, and carbon layers in optimal thicknesses.

To complete the device, apply the adhesive impregnation mask to avoid liquid spreads outside the active area. Drop the precursor solution, and let it sip into the porous structure. Perovskite will grow within the electrode stack upon annealing, and result in a fully functional, air stable perovskite solar cell.

NB: Applying heat/damp treatment, or light-soaking the device in short-circuit for some time typically helps reaching nominal performance. See J. Mater. Chem. A 2017, 5, 12060-12067 [doi:10.1039/C7TA04132B].

FROM PARTIAL TO FULL STACK ELECTRODES

Pick up the electrode configuration of your choice, whether it would be the entire stack comprising compact titania, meso- porous titania, mesoporous zirconia, and carbon, or any of the partial intermediaries.

Laser
Lines

Silver
Contacts

Compact
TiO2 Layer

Mesoporous
TiO2 Layer

Mesoporous
ZrO2 Layer

Carbon
Layer

Scribed Electrodes

-

-

-

-

-

Silver Contacts Electrodes

-

-

-

-

Compact Titania Electrodes

-

-

-

Mesoporous Titania Electrodes

-

-

Mesoporous Zirconia Electrodes

-

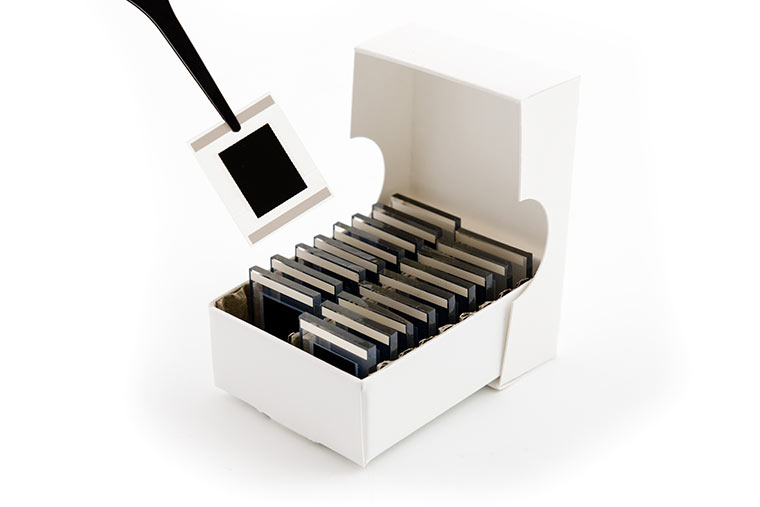

Carbon Monolithic Electrodes

Size: 25 x 20 mm
Active area: 12.5 x 12 mm
Carbon area: 12 x 15.5 mm

BUY

COMPLEMENTARY ITEMS

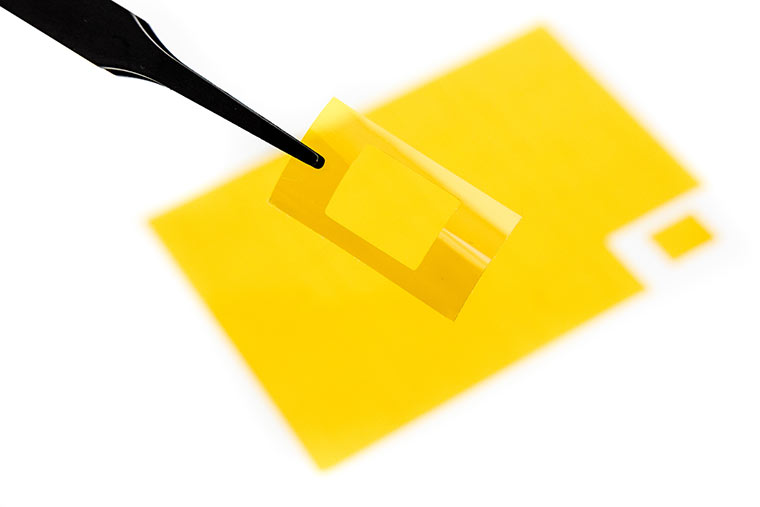

Polyimide Impregnation Masks

Set of adhesive polyimide masks matched to monolithic electrodes, and resistant to perovskite precursor solution.

Material:polyimide, and adhesive
Size: 32.5 x 19 mm
Aperture: 16 x 12.5 mm

BUY

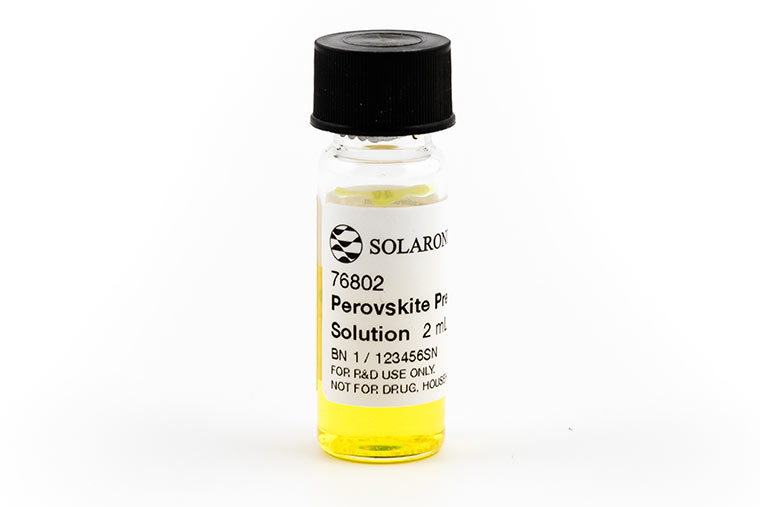

Perovskite Precursor Solution

Pre-mixed solution for the infiltration of CH3NH2PbI3 perovskite into monolithic electrodes in a single step.

Content: lead iodide, methylammonium iodide, 5-aminovaleric acid hydroiodide
Solvent: gamma-butyrolactone

BUY

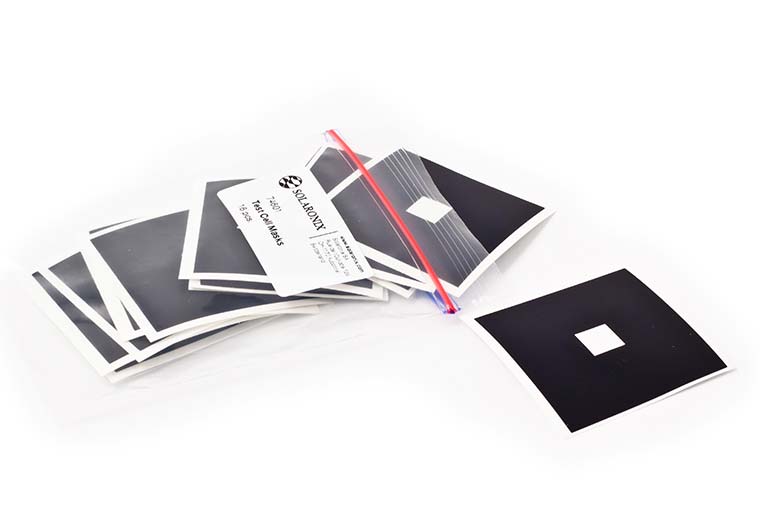

Measurement Masks

Set of 20 adhesive black vinyl masks bearing an 8 x8 mm aperture for accurate efficiency measurements.

Material:black vinyl, and adhesive
Size: 40 x 40 mm
Aperture: 8 x 8 mm

BUY

Sealing Gaskets, Glass Lids, and Pre-Laminates

Sealing Gaskets

Size: 19.5 x 19.5 mm; Aperture: 12.5 x 12 mm

BUY

Glass Lids

Size: 20 x 20 mm

BUY

Pre-Laminated Glass Lids

Size: 20 x 20 mm; Gasket: 19.5 x 19.5 mm

BUY
