The Education Cell Kit was designed to allow professors and students to easily make their own Dye Solar Cells. The kit consists in an affordable titania electrode that is ready to be stained with a natural dye such as those found in berries.

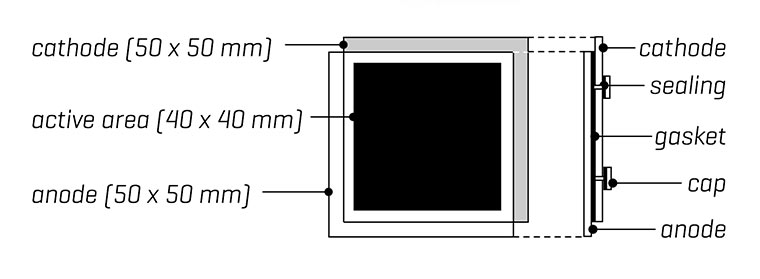

For simplicity, the solar cell can be assembled by clipping the two electrodes against each other. For durability, the cell can be sealed by laminating the two electrodes with a gasket.
More experienced users can build state-of-the-art Dye Solar Cells using platinized counter-electrode, a ruthenium sensitizer, and an advanced iodide electrolyte.
For open cells, counter electrodes to be coated with carbon or platinum, dye and electrolyte at customer’s discretion.
Titania Electrodes, 4 pcs.
Bare Electrodes, not drilled, 4 pcs.
Option with electrolyte: Education Electrolyte, 5 mL
For sealed cells, gaskets and sealings included, counter-electrodes coated with platinum and drilled.
All of the Parts Bundle plus:
Titania Electrodes, 4 pcs.
Platinum Electrodes, drilled, 4 pcs.
Gaskets, 5 pcs.
Sealings, 5 pcs.
Caps, 10 pcs.
Option with chemicals: Mosalyte TDE-250, 5 mL (electrolyte), Ruthenizer 535-bisTBA, 20 mg (ruthenium dye), and Chenodeoxycholic Acid, 80 mg (staining additive).
Titania Electrodes, transparent, 4 pcs. |
Size: 50 x 50 mm; Active area: 40 x 40 mm |
|
Platinum Electrodes, drilled, 4 pcs. |
Size: 50 x 50 mm |
|
Platinum Electrodes, not drilled, 4 pcs. |
Size: 50 x 50 mm |
|
Bare Electrodes, drilled, 4 pcs. |
Size: 50 x 50 mm |
|
Bare Electrodes, not drilled, 4 pcs. |
Size: 50 x 50 mm |
|
Gaskets, 5 pcs. |
Size: 46 x 36 mm; Aperture: 40 x 40 mm |
|
Sealings, 10 pcs. |
Size: 6 x 6 mm |
|
Caps, 10 pcs. |
Diam.: 6 mm |
Should you like to place an order or ask for a quotation, please navigate to our webshop at shop.solaronix.com.
If you so prefer, you can also contact us directly with the desired items and quantities.
Download the Solaronix Materials brochure, with prices and references:
(PDF, 4.4 MB)
