Demonstration Cell Kit
Make Large Area Dye Solar Cells

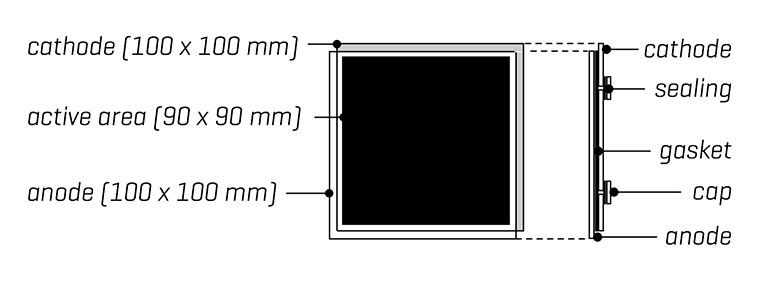

The Demonstration Cell kit is designed to make exhibition devices. With an active area of 81 cm2, this type of solar cell can power a small electric load, and can run nicely in office lighting or other diffuse light conditions.

The most basic assembly of demonstration cell consists in dying the titania anode with a natural dye. The cathode can be prepared from a conductive glass and a carbon source. A more performant setup would make use of a platinized counter-electrode, a synthetic dye, and an advanced electrolyte such as found in our product portfolio.

For durability, the demonstration cell can be sealed with a gasket, filling in the electrolyte through the holes drilled in the cathode.

BUNDLED ITEMS

Demonstration Cell Kit, Basic Bundle

For open cells, counter electrode to be coated with carbon or platinum, dye and electrolyte at customer’s discretion.

Titania Electrode, transparent, 1 pc.
Bare Electrode, not drilled, 1 pc.

BUY

Demonstration Cell Kit, Advanced Bundle

For sealed cells, gaskets and sealings included, counter-electrodes coated with platinum and drilled. Dye and electrolyte at customer’s discretion.

Titania Electrode, transparent, 1 pc.
Platinum Electrode, drilled, 1 pc.
Gaskets, 5 pcs.
Sealings, 10 pcs.
Caps, 10 pcs.

BUY

INDIVIDUAL ITEMS

Titania Electrode, transparent, 1 pc.

Size: 100 x 100 mm; Active area: 90 x 90 mm

BUY

Platinum Electrode, drilled, 1 pc.

Size: 100 x 100 mm

BUY

Platinum Electrode, not drilled, 1 pc.

Size: 100 x 100 mm

BUY

bare electrode, drilled, 1 pc.

Size: 100 x 100 mm

BUY

bare electrode, not drilled, 1 pc.

Size: 100 x 100 mm

BUY

Gaskets, 5 pcs.

Size: 96 x 96 mm; Aperture: 90 x 90 mm

BUY

Sealings, 5 pcs.

Size: 6 x 6 mm

BUY

Caps, 5 pcs.

Diam.: 6 mm

BUY
